Show Barn Gates

Show Stopper Equipment, your livestock grooming supplies & show animal equipment source!

Show Barn Gates /  4H Fair Pen Gates / Horizontal Finishing Gates

Show Barn Gates
Show Barn Gates Show Barn Gates
with Clip on Feeder Rods, Cup Water and Feeder
  • Gates designed and specially-built for your show barn.
  • Pen sizes available to work for your show animals.
  • Show gates are 36” tall overall.  Gate is 34” tall mounted 2” off the floor.
  • Alley pen gates are a pin-and-latch system with door jam swing-away style.  Alley gates swing open like a door.  Easy to open and close for any age of child or adult.
  • Divider gates are 7/8” solid rod on top and bottom of gates.  3/8” solid vertical rods on 3” center.
  • Alley gates are 1/2” sch 40 pipe on top of gates and 7/8” solid rod on bottom of gates.  3/8” solid vertical rods on 3” center.
  • Dip Painted Blue (Optional colors available at additional charge with powder-coated paint)
  • Optional clip-on feeder rods welded on to divided or alley gates.

Rod Heights available:
10" off floor,   8" from bottom of gate
14" off floor,  12" from bottom of gate
18" off floor,  20" from bottom of gate

Hanging Feeders Front Height:
White Feeder 6" below rod height,
Black Feeder 3-1/2" below rod height


  • Individually designed for your show barn.  Call 1-800-848-8386 for more information

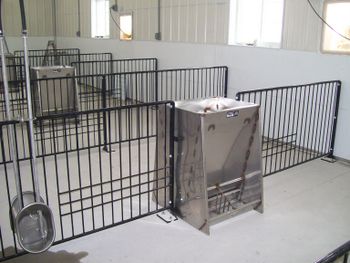

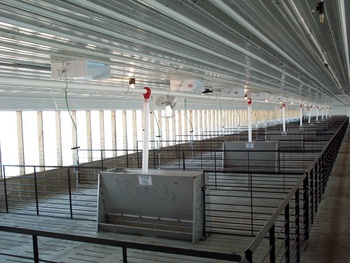

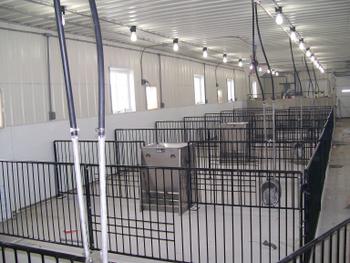

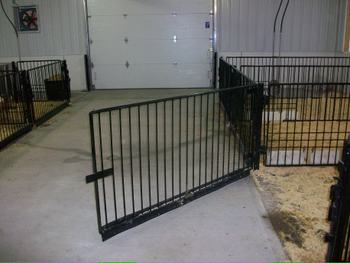

Show Barn Gates Show Gate Swing Alley Gate

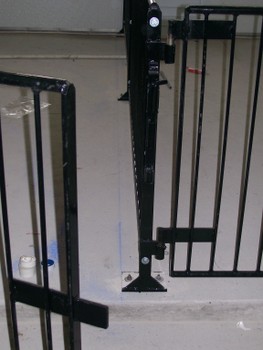

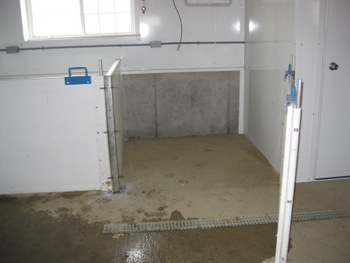

Wash Bay Gates Show Gate Alley Post & Latch System

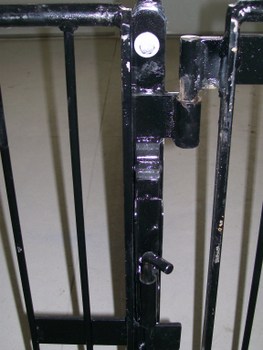

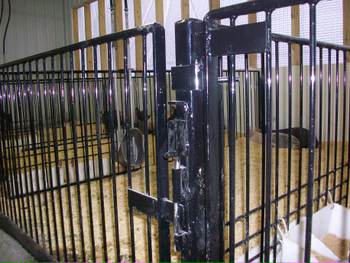

Show Gate Alley Latch System Show Gate Alley Gate & Post

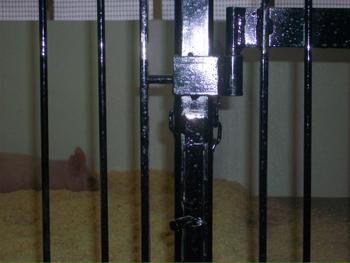

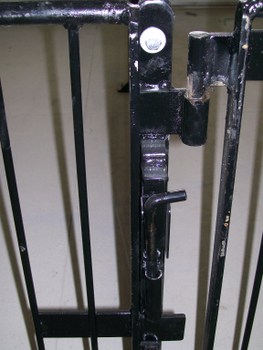

Show Gate Alley Latch System (Open) Show Gate Alley Latch System (Closed)





4H and Fair Pen Gates

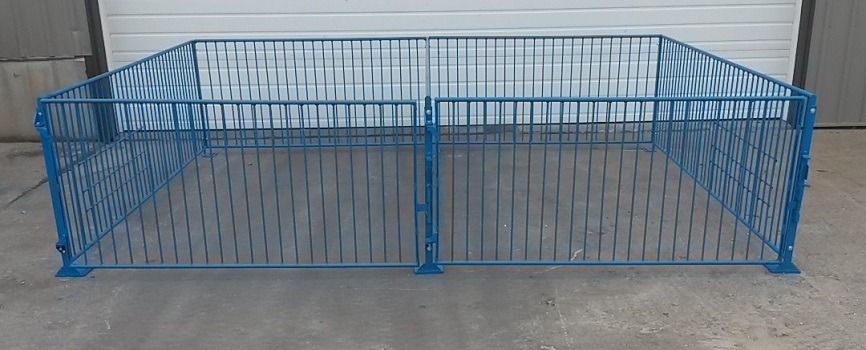

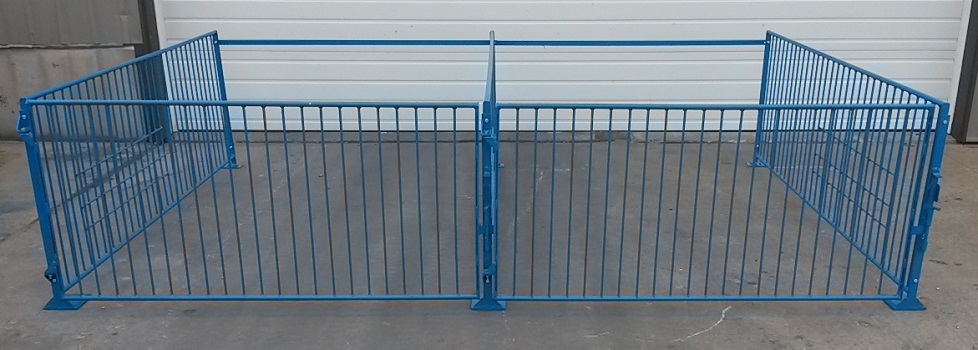

 4H Pen Gates - with Back Gate 4H Pen Gates - No Back Gate
  • Gates designed and specially-built for fairground or show barns.
  • Gates are custom build to your size & specifications.
  • Back Gates Optional
  • Fair Gates are 36” tall overall.  Gate is 34” tall mounted 2” off the floor.
  • Alley pen gates are a quick-latch system with no drop rods.
  • Alley and divider gates are 5/8” solid rod on top and bottom of gates.  3/8” solid vertical rods on 3” center.
  • Optional clip-on feeder rods welded on to divider or alley gates.
  • Dip Painted.  Blue paint.  Optional:  other colors available if powder-coat painted.  (additional charge).

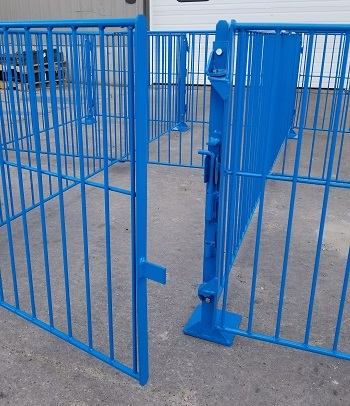

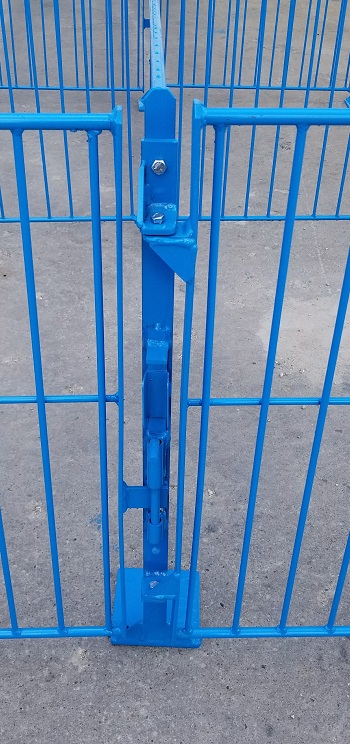

Alley Swinging Gate - for 4H and Fair Gate Alley Post  - for 4H and Fair Gate

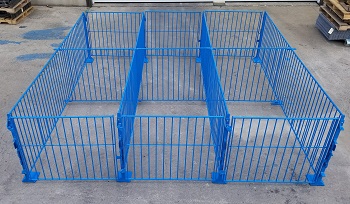

Fair Pen Gates - with Center Divider

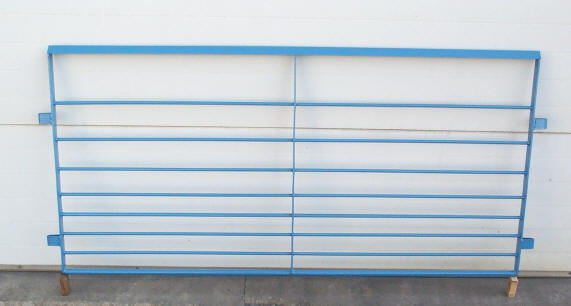

Horizontal Finishing Gates
  • Seven 1/2” solid shaft horizontal rods make this an extremely durable isowean gate
  • 7/8” solid shaft on bottom rod for extra durability.
  • Standard height is 34” tall, mounted 2” off the floor equals 36” tall.  (44” tall gate optional.)
  • Economical design has pads and posts mounted directly to the gates.  No need to pay for separate corner posts.
  • Top of each gate is constructed of 1-1/2”   angle iron.
  • Flat vertical bars are made of 1/4 x 1-1/2”  flat iron
  • Optional post options.  Also available for   vertical gating
  • Optional SSt pad or SSt pad w/steel post
  • Also available for Show Barn Gates

More info on Horizontal Finishing Gates

Standard Alley Gate



Link to Vittetoe Nursery Gates Link to Vittetoe Finishing Gates
